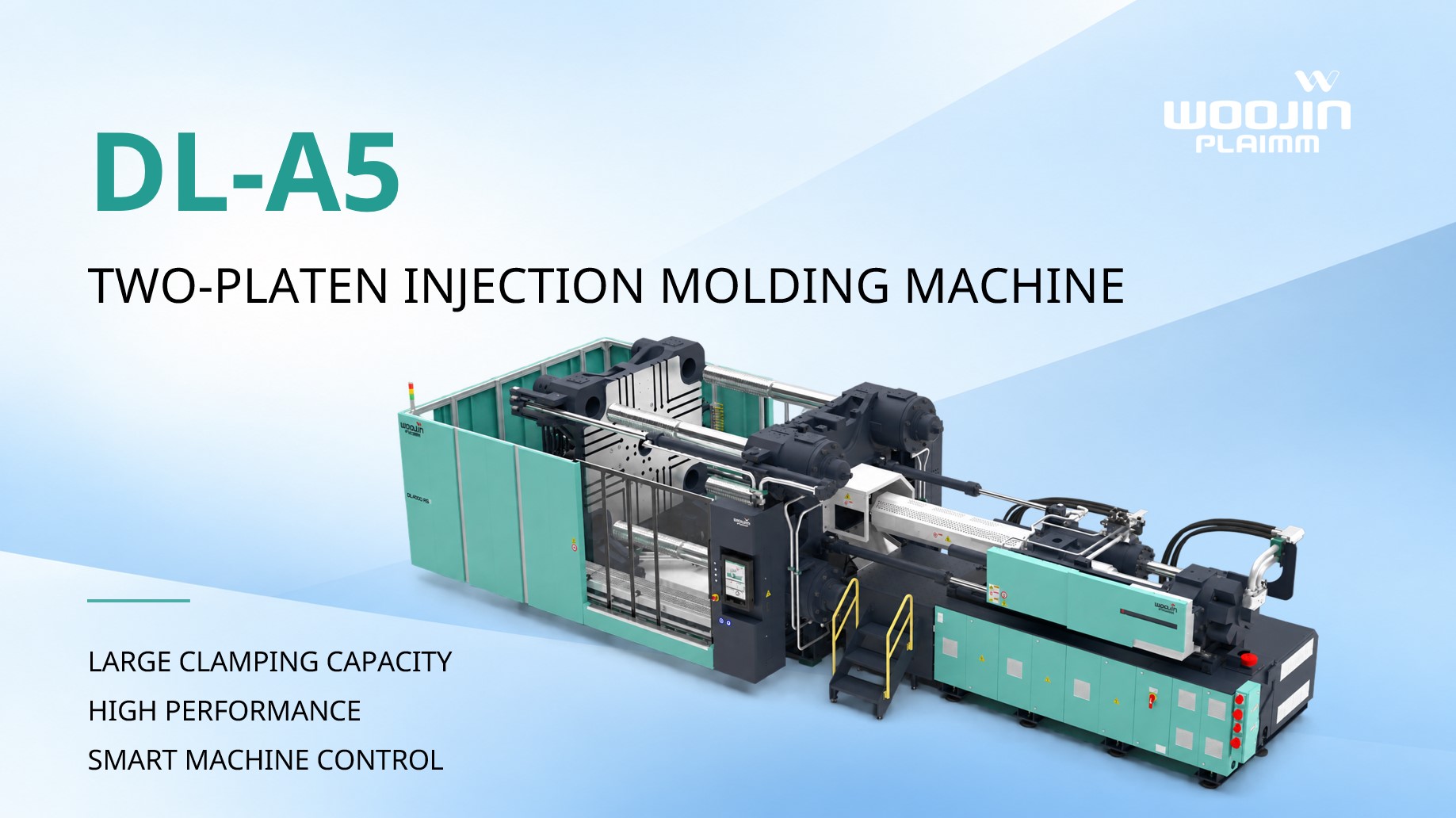

WOOJINPLAIMM DL-A5 is a large-tonnage injection molding machine developed for large plastic components, oversized molds, and high-volume manufacturing. With a 500-to-4,300-ton clamping force range, the series provides flexible options for different large-scale molding requirements. Its compact two-platen structure helps optimize factory space while delivering the strength and stability needed for demanding injection molding processes.
What Makes the DL-A5 a Practical Choice for Large Molding?
The DL-A5 features a direct mold locking system that provides stable clamping performance and supports consistent molding conditions. Its optimized platen structure is designed to handle large and heavy molds while reducing deformation. Synchronized mold locking helps improve operating efficiency, while closed-loop back-pressure control supports accurate and repeatable injection conditions. The servo pump hydraulic system helps manage energy consumption, and independent oil circulation supports controlled hydraulic temperature and cleanliness.
Key Features of DL-A5
- Direct locking system with a two-platen structure for stable and reliable mold clamping
- Optimized platen structure for large and heavy molds
- Synchronized mold locking for efficient machine operation
- Closed-loop back-pressure control for consistent molding performance
- Servo pump hydraulic system for improved energy efficiency
- Independent oil circulation for better hydraulic system management
- High-pressure piping design for reliable hydraulic operation
- Full-touchscreen controller for convenient machine operation and monitoring
Large-Scale Molding Applications
The DL-A5 is suitable for manufacturing large plastic components where high clamping force, large mold capacity, and stable production are required. This large-tonnage injection molding machine can support applications across automotive, industrial, infrastructure, and other manufacturing sectors involving large or complex injection-molded parts.
Controller and Connectivity
Depending on the configuration, the DL-A5 can be equipped with IMC510 or IMC 400 controller systems. The control platform includes a 21-inch Full HD touchscreen along with Ethernet, USB, and serial communication. OPC-UA based on Euro-map 77 enables communication with compatible production systems, while energy monitoring functions provide additional visibility into machine operation.
Built for Efficient Production
The combination of high clamping capacity, stable mold locking, precision injection control, servo hydraulic technology, and industrial connectivity makes the DL-A5 suitable for demanding plastic manufacturing environments. Its capacity range from 500 to 4,300 tons allows manufacturers to select an appropriate machine configuration for large molds, component requirements, and production volumes.
Looking for a reliable injection molding machine manufacturer? WOOJINPLAIMM DL-A5 delivers large-tonnage molding with stable direct locking for large plastic components.
